The Image Simulator

Overview

The image simulator (the nav.sim package) renders synthetic spacecraft frames – stars, planetary bodies, and rings, with a realistic detector model – from operator-supplied geometry rather than from SPICE. It exists to test and validate the navigation pipeline, not as an end-user product: because every simulated frame’s true pointing offset is known by construction, a simulated image is the only frame whose navigation answer can be checked exactly. The simulator drives the algorithmic-invariant tests, the regression baselines, the single-variable sensitivity sweeps, and the sensitivity report (Simulator Performance and Sensitivity Report).

The simulator has three equally valid entry points (the “three peers”):

• the Python API (nav.sim.render.render_combined_model() and the per-feature renderers),

• the YAML scene catalog under tests/integration/sim_scenes/ (validated by nav.sim.scene), which is the durable test artifact, and

• the GUI nav_create_simulated_image, an interactive editor for the same parameters.

Every parameter is reachable from all three; adding a physical effect means adding it to the renderer, the scene schema, and a GUI control together. The navigator side – how a simulated frame is turned into NavFeature objects and navigated – is documented in the simulated-model chapters (Simulated Body Navigation Model, Simulated Ring Navigation Model, Simulated Star Navigation Model); this chapter documents the rendering side and the scene formats.

What can be simulated

A scene is composed from these ingredients, each independently optional:

• Ellipsoidal bodies – a triaxial ellipsoid with Lambertian shading at a chosen illumination azimuth and phase angle, optional in-plane rotation and tilt, and optional procedurally generated craters.

• Irregular (polyhedral-mesh) bodies – a procedurally generated lumpy mesh at a chosen three-axis pose, for non-ellipsoidal shapes (Hyperion-like, Phoebe-like). See Body parameters.

• Planetary rings – bright ringlets and dark gaps with elliptical (mode-1, eccentric) edges and per-edge anti-aliased shading.

• Stars – an explicit list of stars at chosen positions and magnitudes, and a procedurally generated field of random background stars.

• A camera-roll and pointing offset – the planted ground truth the navigator must recover: a sub-pixel (dv, du) translation and a boresight roll.

• A realistic detector model – Poisson shot noise, Gaussian read noise, a bias pedestal, cosmic-ray spikes, missing-data markers, full-well saturation with optional column bloom, and a per-instrument PSF – all keyed to the emulated instrument’s configuration.

• A stray-light gradient – a linear brightness ramp or a radial flare bump, to exercise the source-image background filter.

Per-instrument coupling means a simulated “Cassini ISS NAC raw” frame goes through the same noise sigma, signal scale, saturation, marker value, and PSF as a real CISS NAC raw frame; the emulated instrument is chosen by the instrument field (see Instruments).

Scene ingredients

The panels below are rendered by python -m tests.integration.sim_doc_images (see Exporting viewable PNGs); each isolates one ingredient.

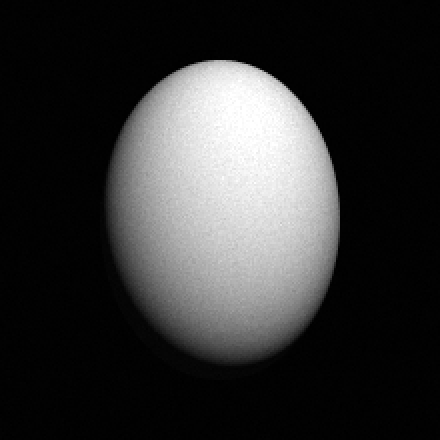

Ellipsoidal body (Lambertian, moderate phase). axis1 is the vertical extent, axis2 the horizontal.

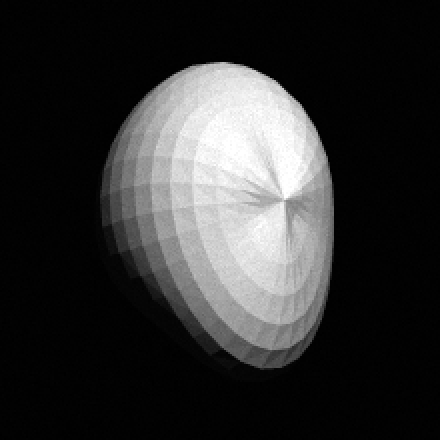

Irregular polyhedral-mesh body of the same axes at a three-axis pose.

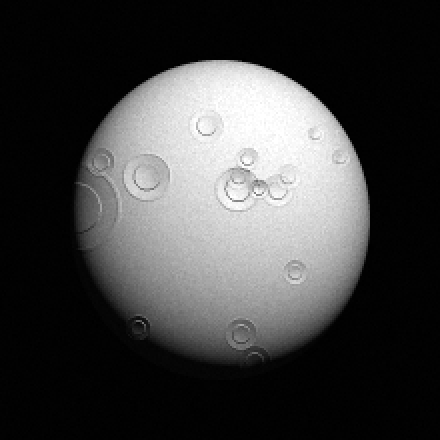

Ellipsoid with procedurally generated craters.

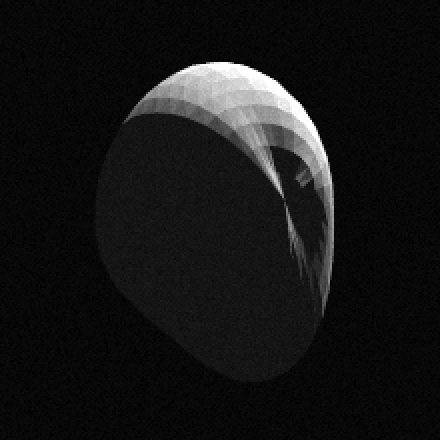

High-phase (130 deg) mesh body rendered as a thin lit crescent.

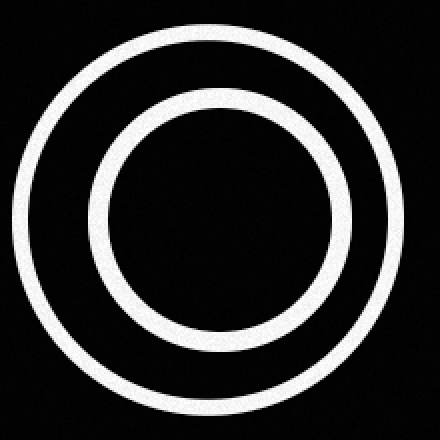

Two eccentric ringlets with a gap between them.

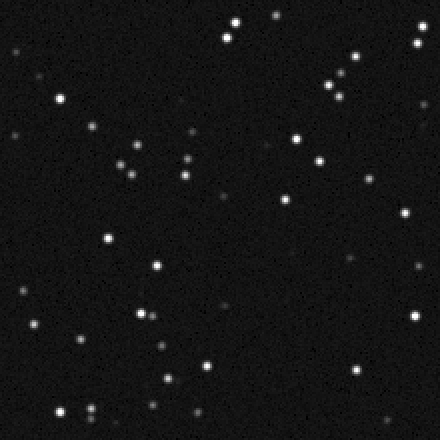

A random background star field.

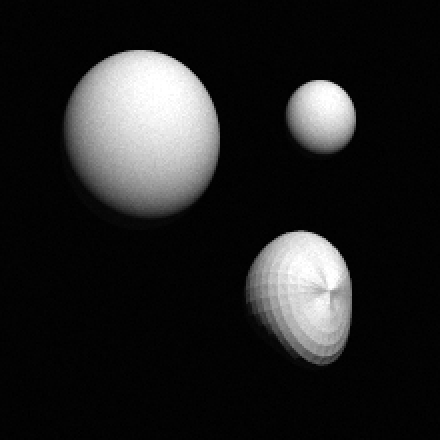

Multiple bodies (ellipsoid and mesh) at different sizes, depth-ordered by range.

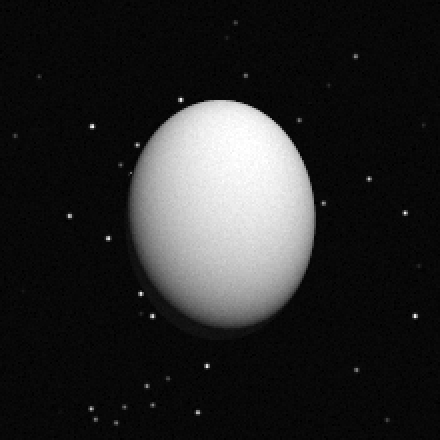

A body against a background star field.

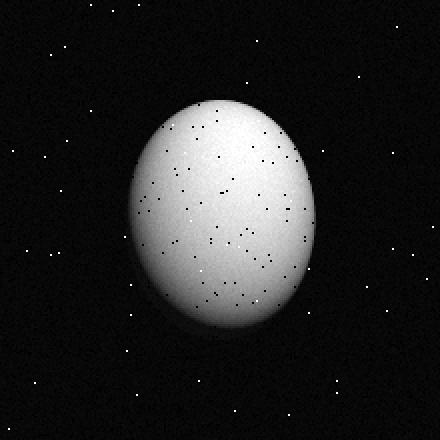

Detector model: read + shot noise, sparse cosmic-ray spikes (bright) and missing-data dropouts (dark).

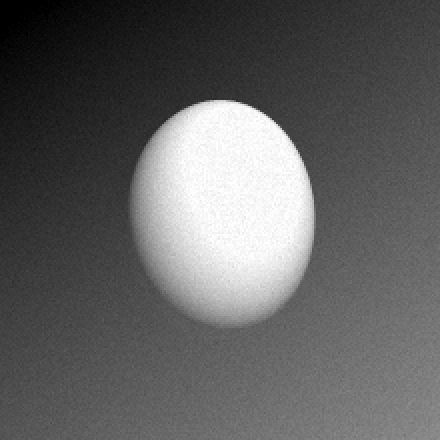

A linear stray-light gradient behind a body.

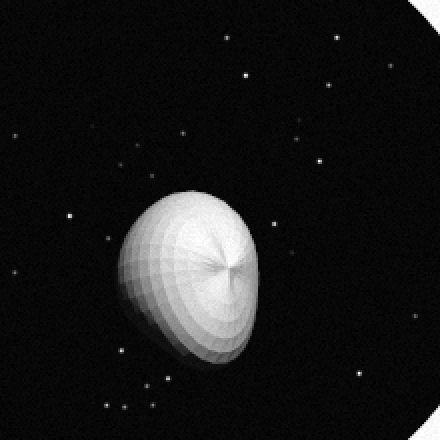

A composite frame: a mesh moon, a ring, and a star field.

The render pipeline

nav.sim.render.render_combined_model() takes a sim_params dict and returns (image, metadata). It composes the frame in a fixed order so each later stage sees the accumulated signal: background stars, then the explicit star list, then bodies and rings (depth-sorted far-to-near by their range), then the noise-free stray-light gradient, then the detector model (signal scaling, Poisson shot noise, Gaussian read noise, bias pedestal, cosmic rays, missing-data markers, and saturation with optional bloom). The output is an array of detector counts (DN).

Determinism. Every random effect draws from a per-effect sub-seed derived from the scene’s random_seed (nav.sim.seeds), so the same scene renders byte-identically, and adding a new randomized effect does not perturb the output of existing ones. Crater placement uses a stable hash of the body’s geometry when the body gives no explicit seed.

Instruments. The instrument field selects which per-instrument configuration block drives the detector model and PSF (nav.sim.instruments). The recognized names are coiss_nac, coiss_wac, coiss_calib_nac, coiss_calib_wac, gossi, nhlorri, and vgiss, plus generic (alias sim) for the instrument-agnostic defaults. Calibrated (*_calib_*) instruments are in I/F units with a NaN missing-data marker and no full-well; raw instruments are in DN with a 0 marker. A scene can pin or override individual instrument settings with instrument_config (see Instrument-config overrides).

Scene format

A scene is a single YAML file whose fields are the flat runtime sim_params names the renderer consumes, so a validated scene file is the sim_params dict with no translation layer.

The scene catalog (nav.sim.scene) is the durable test artifact, laid out as tests/integration/sim_scenes/<scene_class>/<scene_name>.yaml (the directory is the registry). nav.sim.scene.load_sim_scene() parses and validates a file and returns the flat sim_params dict the renderer consumes; the GUI’s “Save Scene (YAML)” / “Load Scene (YAML)” buttons read and write the same format via nav.sim.scene.save_sim_scene(). The scene classes (for example algorithmic_invariants, phase_sweep_regular_body, phase_sweep_irregular_body, range_sweep, noise_sweep, multi_body_geometry, regression) scope what each scene is testing and are enforced by the structural test. The scene README at tests/integration/sim_scenes/README.txt documents the schema alongside the code.

A complete YAML scene – a noisy Cassini NAC frame with one irregular mesh body, a ring, a couple of stars, and a planted offset the navigator must recover – reads:

schema_version: 1
scene_name: example_scene
instrument: coiss_nac
size_v: 220
size_u: 220
random_seed: 42
exposure_sec: 1.0
bodies:
  - name: HYPERION
    shape_model: polyhedral_mesh
    mesh_lumpiness: 0.4
    mesh_seed: 7
    pose_euler_deg: [10.0, 35.0, 0.0]
    center_v: 110.0
    center_u: 110.0
    axis1: 150.0
    axis2: 110.0
    axis3: 95.0
    illumination_angle: 25.0
    phase_angle: 40.0
rings:
  - name: RINGLET
    feature_type: RINGLET
    center_v: 110.0
    center_u: 110.0
    inner_data: [{mode: 1, a: 90.0, ae: 6.0}]
    outer_data: [{mode: 1, a: 98.0, ae: 6.0}]
    shading_distance: 10.0
    range: 1000.0
background_stars_num: 40
stars:
  - {name: S1, v: 30.0, u: 60.0, vmag: 6.0}
  - {name: S2, v: 180.0, u: 150.0, vmag: 7.5}
noise:
  poisson: true
  read_noise_dn: 4.0
offset_v: 1.43
offset_u: -0.61

The schema_version and scene_name keys are metadata the renderer ignores; scene_name must equal the filename stem. Every other key is a flat sim_params field consumed directly by the renderer.

Scene parameter reference

Top-level fields

Field	Type	Default	Meaning
size_v / size_u	int	required	Image height and width in pixels.
instrument	str	generic	Emulated instrument; selects the detector model and PSF (see Instruments).
random_seed	int	42	Scene seed; per-effect sub-seeds derive from it.
exposure_sec	float	1.0	Exposure time; scales the cosmic-ray count.
offset_v / offset_u	float	0.0	Planted pointing offset (px) applied to all bodies, rings, and stars.
offset_rotation_deg	float	0.0	Planted boresight roll (deg) applied about the image center.
bodies	list	[]	Per-body parameter dicts (see Body parameters).
rings	list	[]	Per-ring parameter dicts (see Ring parameters).
stars	list	[]	Explicit star dicts (see Star parameters).
background_stars_num	int	0	Random background-star count (0-1000).
noise	dict	instrument	Detector-noise block (see Detector-noise block).
stray_light	dict	off	Stray-light block (see Stray-light block).
instrument_config	dict	none	Per-instrument config overrides (see Instrument-config overrides).

Body parameters

Each entry of bodies is a dict. Common fields:

Field	Type	Default	Meaning
name	str	generated	Body label used in metadata and annotations.
center_v / center_u	float	frame center	Body center in pixels.
axis1 / axis2 / axis3	float	0.0	Full extents of the three body axes in pixels (axis3 defaults to min(axis1, axis2)).
illumination_angle	float (deg)	0.0	Image-plane light azimuth (0 = from the top).
phase_angle	float (deg)	0.0	Phase angle (0 = fully lit, 180 = back-lit crescent).
range	float	body index	Depth-ordering key; smaller renders in front.
shape_model	str	ellipsoid	ellipsoid or polyhedral_mesh.

Ellipsoid bodies add rotation_z and rotation_tilt (degrees), the crater controls crater_fill, crater_min_radius, crater_max_radius, crater_power_law_exponent, crater_relief_scale, and an optional crater seed. Mesh bodies (shape_model: polyhedral_mesh) instead read:

Field	Type	Default	Meaning
mesh_lumpiness	float	0.3	Surface relief amplitude as a fraction of the unit radius.
mesh_seed	int	0	Seed selecting which irregular shape is generated.
mesh_n_lat / mesh_n_lon	int	16 / 32	Mesh latitude bands and longitude divisions.
pose_euler_deg	[float, float, float]	[0, 0, 0]	Body orientation as intrinsic X, Y, Z Euler angles (degrees).
nav_override	dict	none	Overlay applied to the predicted body only, diverging the navigation geometry from the rendered one (see below).

Note

Axis convention. Both renderers use the same mapping: axis1 is the vertical (v) extent and axis2 the horizontal (u) extent. An ellipsoid and a mesh declared with identical axis1/axis2 are oriented the same way, so the two are interchangeable for the same geometry.

Render geometry vs navigation geometry. By default the navigator predicts the body from the same parameters the renderer drew, so it knows the truth. A body may carry an optional nav_override mapping that is overlaid on the predicted body only – the renderer ignores it and always draws the true geometry. This separates the render geometry (ground truth) from the navigation geometry (what the navigator assumes), the channel the irregular-body scenarios use to render a lumpy mesh but predict its smooth (ellipsoidal) limit, or to predict the same body at a disagreeing pose. The override never moves the center, so the planted offset is still recoverable. See Simulated Body Navigation Model.

Ring parameters

Each entry of rings is a dict with name, a feature_type of RINGLET (adds brightness) or GAP (subtracts it), a center_v / center_u, a shading_distance (edge-fade width in pixels), a range depth key, and inner_data / outer_data edge lists. At least one edge is required. Each edge is a list of mode dicts; the required mode-1 dict carries the elliptical orbit: a (semi-major axis, px), ae (eccentricity times a, px), long_peri (longitude of pericenter, deg), and rate_peri (precession rate, deg/day, applied across time minus ring_epoch).

Star parameters

Each entry of stars is a dict with name, a v / u position, a vmag (visual magnitude; lower is brighter), a psf_sigma, and an optional spectral_class. Random background stars are added by setting background_stars_num; their PSF sigma and brightness power-law are configured by background_stars_psf_sigma and background_stars_distribution_exponent. Stars are rendered with a half-pixel PSF-evaluation offset so a star’s brightness centroid lands exactly at its predicted (v, u), which keeps star navigation free of a constant half-pixel bias.

Detector-noise block

The optional noise dict overrides the emulated instrument’s detector defaults:

Field	Type	Default	Meaning
poisson	bool	True	Apply Poisson shot noise to the signal.
read_noise_dn	float	instrument	Gaussian read-noise sigma in DN.
bias_dn	float	instrument	Additive bias pedestal; lifts dark sky off zero so it is not confused with the missing-data marker.
cosmic_ray_rate_per_sec	float	0.0	Cosmic-ray fluence (events / cm^2 / sec), scaled by exposure_sec.
missing_data_rate	float	0.0	Fraction of pixels (0-1) set to the missing-data marker.

Saturation clips at the instrument’s full-well DN after noise; cameras with documented column bloom can carry a bloom_length that spreads saturated excess along the column.

Stray-light block

The optional stray_light dict adds a background contribution before the detector model: amplitude (peak fraction of full scale; 0 disables it), direction_deg (ramp direction for the linear model), and model (linear ramp or radial bump). It exercises the navigator’s source-image background filter.

Instrument-config overrides

The optional instrument_config dict is deep-merged over the resolved per-instrument block, so a scene can pin individual settings (PSF sigma, noise, data units, extfov margin) without tracking later camera-config edits. Omit it to inherit everything; name generic and override everything to fully self-specify. The top-level noise block still wins over instrument_config.noise for rendering. See Observations.

The simulated-image GUI

nav_create_simulated_image is a PyQt6 editor for the same parameters, with a live preview. Launch it with:

nav_create_simulated_image

The GUI exposes the full scene parameter surface, so any scene that can be written by hand in YAML can also be built in the GUI. The General tab carries the image size, the planted offset and camera roll, the exposure time, the seed, the instrument selector, the camera-rotation-fit override and midtime, the detector-noise panel (Poisson, read noise, bias, bloom, signal full-scale, pixel area, cosmic-ray rate, missing-data rate), the stray-light panel (amplitude, direction, model, radial centre), a PSF preview, a saturation overlay toggle, the closest-planet selector and ring times, and the background-star controls. Each per-body tab carries that body’s geometry, a shape-model dropdown (ellipsoid or mesh) with the mesh lumpiness / seed / resolution / pose controls, the crater controls and crater seed, an optional physical scale, and a navigation-override group (the predicted geometry that diverges from the rendered one). Each per-star tab carries the star’s position, magnitude, PSF, smear vector, and catalog label; each per-ring tab carries the ring’s edges and shading. The parameters the GUI does not edit are the nested instrument_config overrides, multi-mode ring edges (the renderer reads only mode 1), and the absolute signal_full_scale_dn alias (its fractional form is exposed instead). Scenes round-trip through the Load / Save Scene (YAML) buttons, so a scene rendered in the GUI can be saved as a catalog artifact and a catalog scene can be loaded back to edit. The GUI is one peer, not the sole control surface; the YAML and the Python API are equally authoritative.

Running navigation on a simulated image

A simulated image is navigated through the same pipeline as a real frame, via the sim dataset. With a saved YAML scene file:

nav_offset sim /path/to/scene.yaml

The sim dataset (DataSetSim) builds an ObsSim that loads the scene via nav.sim.scene.load_sim_scene(), renders the frame, and carries the sim_params on the snapshot. (A runtime scene file must still satisfy the validator, so its scene_name must equal the filename stem.) The model-selection layer routes a simulated obs to the simulated NavModels – NavModelBodySimulated, NavModelRingsSimulated, NavModelStarsSimulated – which build one feature set per body / ring / star field from the scene parameters, while the SPICE-backed models decline a simulated obs. From there the same techniques run and produce the same NavResult. In tests the scene is usually driven directly: ObsSim.from_file(path, sim_params=load_sim_scene(path)).

Exporting viewable PNGs

The renderer emits detector counts whose absolute range depends on the instrument and on cosmic-ray spikes, so nav.sim.png_export stretches a DN image to a viewable grayscale PNG with a percentile clip (a few hot pixels do not crush the signal) and an optional gamma that lifts dim features such as a crescent or a faint star field:

from nav.sim.png_export import render_scene_png
render_scene_png(sim_params, 'frame.png', gamma=1.4, upscale=2)

Two tools build on it. The sweep runner can dump every frame behind a response curve for inspection:

python -m tests.integration.sim_sweep_runner --dump-images out/ --only phase_regular_body

writes one PNG per sweep step under out/<sweep_name>/. The documentation-image generator rebuilds the galleries in this chapter and the scene images in the sensitivity report:

python -m tests.integration.sim_doc_images

Both galleries carry a NOTES.md describing how to regenerate them after a rendering change.

See also

• Simulated Body Navigation Model, Simulated Ring Navigation Model, Simulated Star Navigation Model – the navigator side.

• Testing – the test kinds the simulator drives.

• Simulator Performance and Sensitivity Report – the sensitivity and algorithmic-invariant results.

• API reference: nav.sim.
